CADCraft

Created by ArtCraft team

Computer-aided drafting with layers, dimensions, hatching and DXF workflows. In development.

FreeWindows, macOS, Linuxx64 (linked Windows installer); other builds on official project pageOpen source
Screenshots

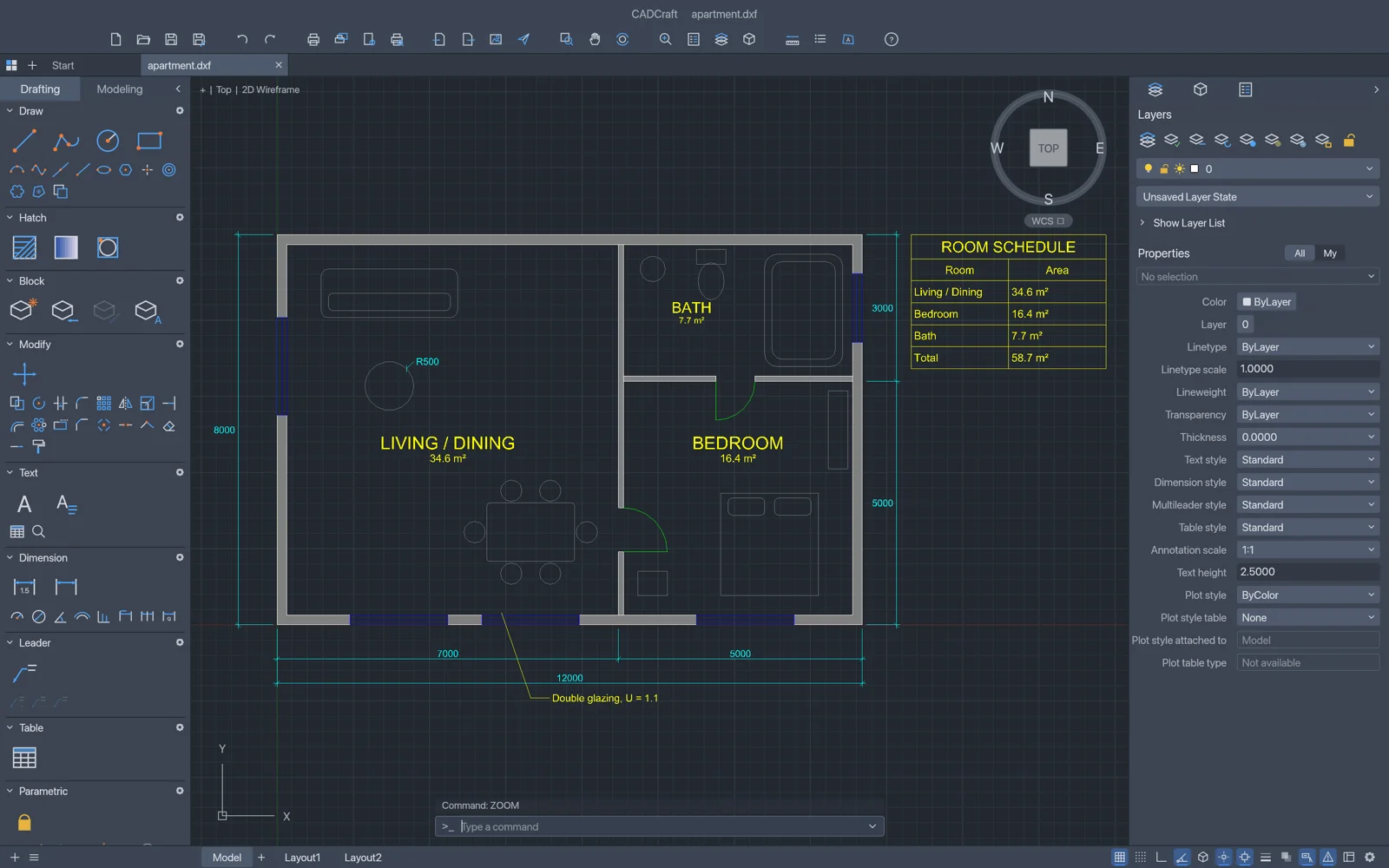

CADCraft displaying an architectural floor plan with pick-point wall hatching, room schedules, dimensions and the command line
CADCraft displaying an architectural floor plan with pick-point wall hatching, room schedules, dimensions and the command line - official ArtCraft screenshot.ArtCraft official project website

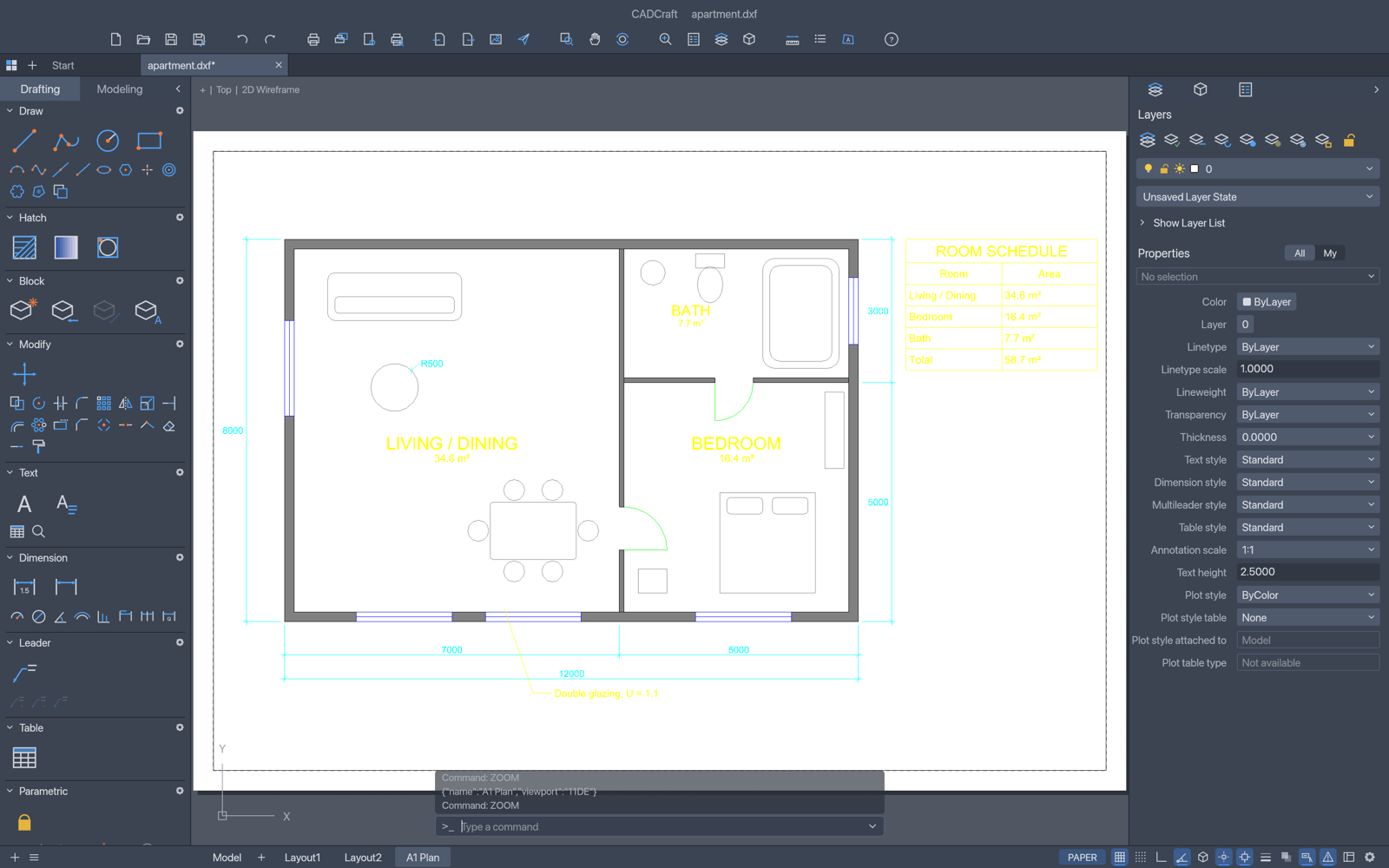

CADCraft paper space layout showing a title block sheet with an active scaled model viewport
CADCraft paper space layout showing a title block sheet with an active scaled model viewport - official ArtCraft screenshot.ArtCraft official project website

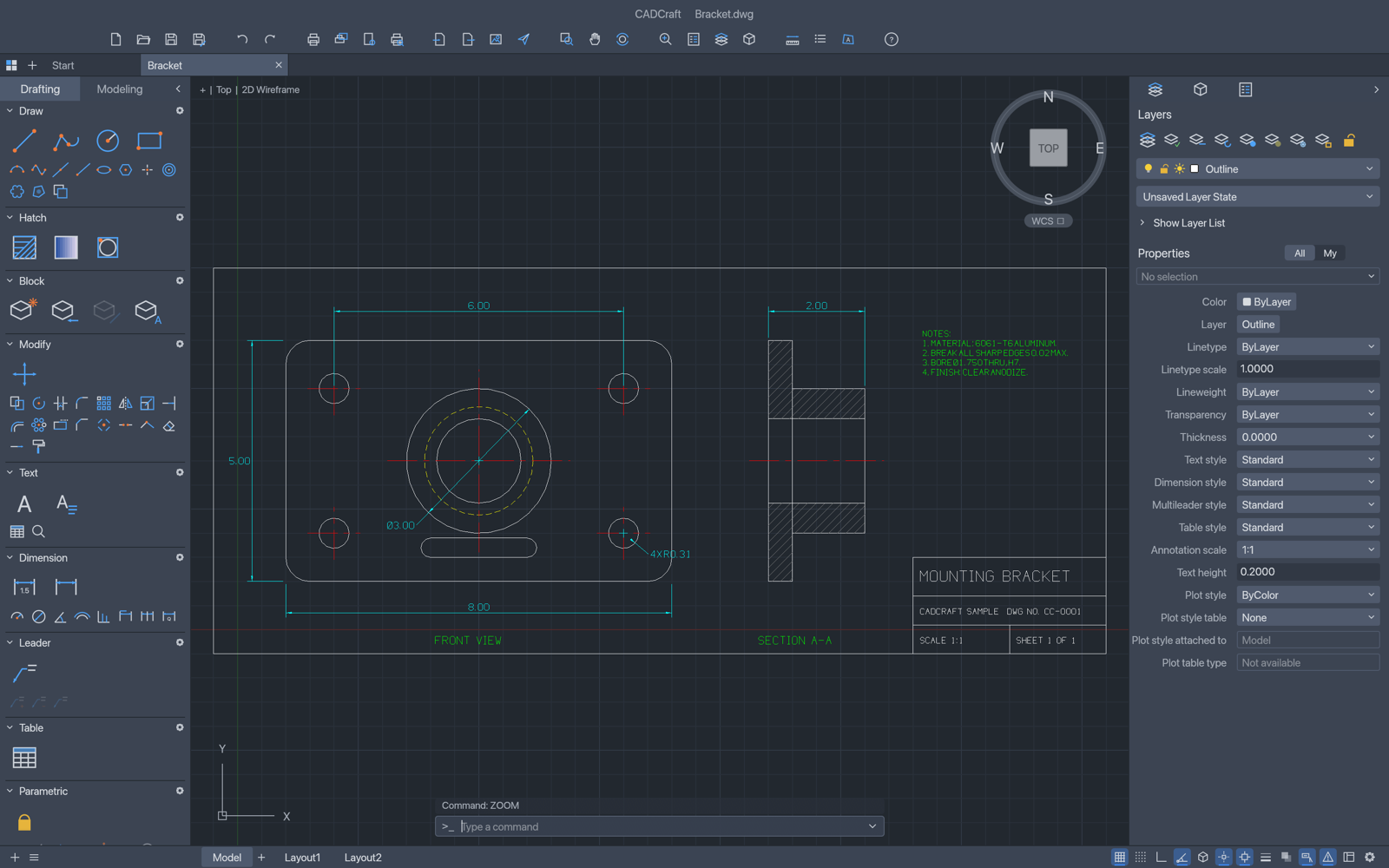

CADCraft drafting a mechanical mounting bracket with section lines, dimensions and title block
CADCraft drafting a mechanical mounting bracket with section lines, dimensions and title block - official ArtCraft screenshot.ArtCraft official project website
About

About CADCraft

CADCraft is ArtCraft's free computer-aided design and drafting tool. Its documented functions include object snaps, layers, dimensions, blocks, layout sheets and DXF files. Start with a copied drawing and check units, geometry and plotted output. Game-ready 3D asset export is not established by this listing.

In development. Source, official Windows installer metadata and artwork checked October 22, 2026. This is an independent catalog listing, not a hands-on compatibility review or a NeonRoof malware certification. NeonRoof links to the original GitHub installer; it does not mirror or modify this package. ArtCraft and its contributors retain the project identity and applicable rights.

ArtCraft source is published under Apache 2.0; retain applicable copyright, license and NOTICE material when redistributing. Review bundled component licenses for binary redistribution. Other platforms and current project support are linked on the official website.

Features

What it does

  • Drafting commands
  • Layers and dimensions
  • Hatching and blocks
  • DXF workflows
Current release

Version 0.8.0

In development. Official Windows x64 MSI linked directly to ArtCraft GitHub release. Metadata checked October 22, 2026. Upstream SHA-256: 285065c77d6b729008206f028cadb9e9c31713952ddf36c4193866d0c8e96093. Other builds: https://getartcraft.com/apps/cadcraft. Installer execution, independent hash validation and malware certification have not been performed.

Released
October 17, 2026
Package
MSI
Signature
Not checked
Security scan
Pending
